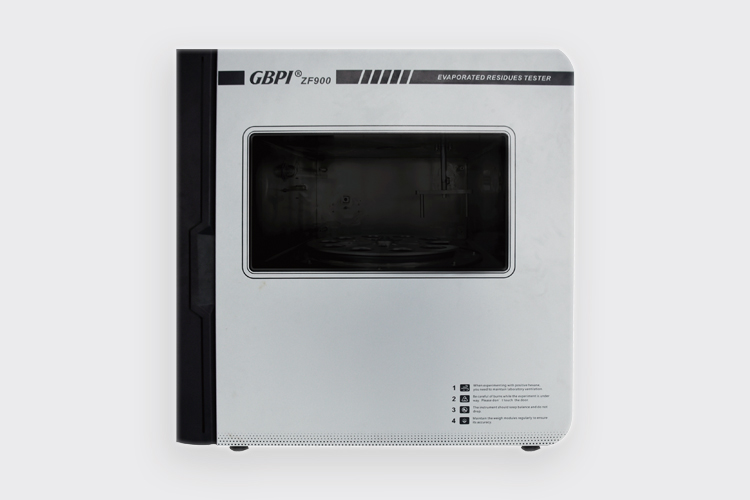

ZF900 Fully‑Automatic Overall Migration & Non‑Volatile Residue Tester: Modern Gravimetric Compliance Solution for Pharmaceutical and Food‑Contact Laboratories

Article Overview

Overall migration and non‑volatile residue testing represents one of the most critical gravimetric workflows within quality‑control laboratories serving food, pharmaceutical, tobacco and chemical industries. Manual evaporation‑residue workflows are notoriously error‑prone: repeated manual sample transfer, inconsistent cooling periods, environmental temperature‑humidity drift, and human reading deviations often create poor test repeatability. These manual bottlenecks frequently cause non‑conformities during regulatory audits under pharmacopoeia, EU food‑contact and national material standards. The ZF900 Fully‑Automatic Overall Migration & Non‑Volatile Residue Tester addresses these long‑standing laboratory pain‑points through fully‑integrated automation, merging water‑bath evaporation, high‑temperature drying, controlled cooling and constant‑weight gravimetric measurement inside one closed‑chamber platform.

Designed for multi‑industry compliance testing, ZF900 delivers total migration (non‑volatile matter, evaporation residue) measurements for purified water, pharmaceutical packaging components, food‑contact materials, cigarette tipping paper and chemical reagent matrices. Beyond migration‑related tasks, this instrument also supports loss‑on‑drying and moisture‑content analysis for solid powders and granular samples, alongside total‑dissolved‑solids determination for varied water‑quality specimens. By removing nearly all manual handling steps, laboratories can enhance data traceability, improve test throughput and reduce operator exposure to hazardous organic solvents.

Test Principle

The gravimetric constant‑weight principle forms the core operational logic of ZF900. Evaporation dishes inside the sealed test chamber go through programmable cycles of controlled heating, cooling and gravimetric reading, repeating cycles until the preset constant‑weight threshold is satisfied. Operators load prepared test solution into pre‑conditioned evaporation cups. The unit performs water‑bath evaporation to remove liquid fractions, then heats the inner cavity up to 105 °C for thorough drying. After completion of the drying segment, samples are cooled under stable chamber conditions. A high‑precision balance measures dish mass automatically. When weight variation falls below the defined constant‑weight error setting, the instrument terminates the experiment and stores final residue‑mass results.

Test Principle Schematic Diagram

Compliance Reference Standards

• Purified Water: Chinese Pharmacopoeia Volume II Purified Water, EP9.0 WATER, PURIFIED
• Pharmaceutical Packaging: Non‑volatile‑matter items from National Pharmaceutical Packaging Material Standards dissolution test
• Food‑Contact Materials: GB 31604.8‑2021, EN 1186‑3:2002 method A, South Korea Ministry of Health and Welfare Utensils‑Containers‑Packages Specification Chapter IV 2‑8
• Cigarette Tipping Paper: YQ/T 59‑2015
• Chemical Reagents: GB/T 9740‑2008, ISO 759
• Water Quality Testing: GB 8538‑2016, DZT0064.9‑2021, GB/T 14415‑2007, GB/T 5750.4‑2006
• Solid Samples: Chinese Pharmacopoeia Part IV Extractables & Loss on Drying, USP40‑NF35 <921> WATER DETERMINATION

Technical Parameters

Core Instrument Benefits

• Cold‑hot dual‑chamber integrated automation: Unified workflow for water‑bath evaporation, high‑temperature drying, controlled cooling, constant‑weight gravimetry and solvent recovery. The closed‑loop setup greatly suppresses environmental interferences. Built‑in water‑bath unit uses liquid‑level sensors for automatic water filling, refilling and draining, together with comprehensive multi‑layer safety protection for bath‑water temperature and waste‑liquid discharge. Advanced electromagnetic temperature‑regulation technology delivers stable heating‑cooling cycles with ±0.5 °C temperature accuracy.
• High‑grade imported balance with physical isolation protection: High‑precision imported analytical balance is sheltered within a water‑circulation interlayer protective housing. During evaporation and drying cycles, the balance compartment is fully isolated from the hot, solvent‑rich test cavity. Weighing operations are only triggered under stabilized temperature‑humidity micro‑environment. Two‑step drying sequences can achieve constant‑weight criteria as tight as 0.3 mg, offering stable readings and excellent measurement repeatability.
• High‑throughput multi‑position capability with broad sample compatibility: Nine independent test stations run separate datasets simultaneously, substantially boosting laboratory throughput. Acceptable test matrices include purified‑water solutions, organic solvents such as n‑hexane, ethanol, acetic acid, chloroform, plus solid powders and granular specimens for loss‑on‑drying tasks.
• Integrated cooling‑recovery subsystem: Built‑in solvent cooling and recovery module improves organic‑solvent handling safety, reduces reagent consumption and lowers laboratory volatile‑organic‑compound exposure risks for lab personnel.

Who Should Consider ZF900?

This automated overall migration and non‑volatile‑residue testing platform fits QC laboratories of food‑contact material manufacturers, pharmaceutical packaging factories, third‑party contract testing institutes, tobacco material labs and chemical‑reagent quality departments. When facing regulatory audit pressure, replacing legacy manual gravimetric workflows with ZF900 helps laboratories eliminate operator‑driven variance, preserve complete test records, and satisfy the traceability expectations set by pharmacopoeia, GB, ISO and EN‑series food‑contact‑material standards.
